RID Arm

Arm Information

The RID’s arm consist of 5 major components

  • End Effector (Gripper)
  • Link Sections
  • Elbow Joint
  • Shoulder Joint
  • Base Joint

End Effector (Gripper)

The End Effector design is currently being tested. More information will be updated once testing has concluded.

Link Sections

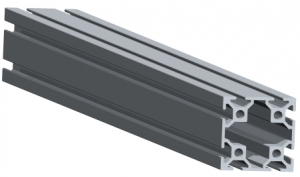

The RID uses a two link arm mechanism. The links are 2ft long sections of extruded aluminum, making them light weight and strong.

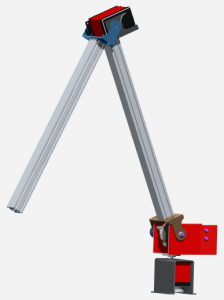

link_1arm_1



Elbow Joint

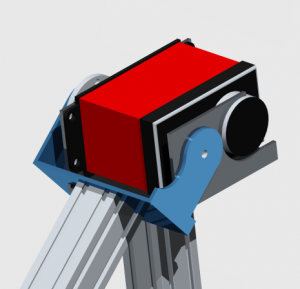

To drive the elbow joint, the RID will be fitted with Invenscience’s Torxis servo that provide up-to 1600 oz-in (8.3 lb-ft) of continuous duty torque.

elbow_1

Shoulder Joint

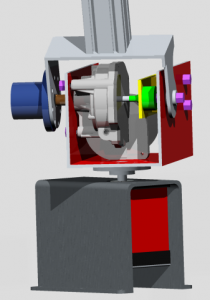

Due to the length of the arm, the shoulder joint will require a tremendous amount of torque. Unable to find a commercially available servo with the high torque requirements necessary to drive the arm, a patent pending servo was designed. This servo will yield 5000 oz-in (26 lb-ft) of torque and only weight 4 lbs.

arm_bottom_2

 Base Joint

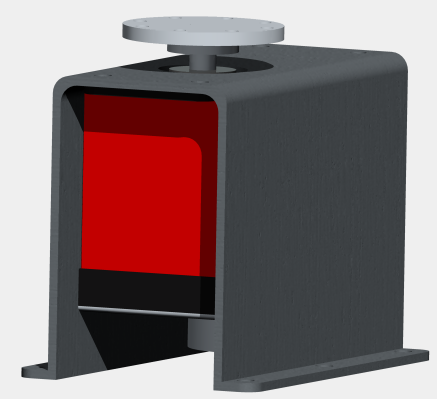

The base joint consists of a Torxis servo that provides the rotational movement for the arm.



Base



 Inverse kinematics test

There still needs to be some tuning with the PID settings on the servo controllers but here is video of the inverse kinematics test.
